MAX LINKER

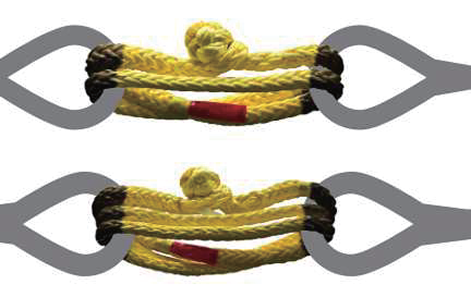

A soft shackle is a synthetic fibre line connection for the main towline. It replaces a conventional cow hitch, thimble and shackle or similar hardware. It consists of a short length of synthetic line with an eye termination at one end and a stopper knot on the other end. The eye rests on the neck of the stopper knot and tightens as load si applied to the towing assembly.

Description Theoretical Breaking Force (KN) Theoretical Breaking Force (TON)
2Loops 22mm Dia1040106
3Loops 22mm Dia1560159
2Loops 24mm Dia1222125
3Loops 24mm Dia1833187
2Loops 26mm Dia1404143
3Loops 26mm Dia2106215
2Loops 28mm Dia1586162
3Loops 28mm Dia2379243
2Loops 30mm Dia1794183
3Loops 30mm Dia2691275
2Loops 32mm Dia2028207
3Loops 32mm Dia3042310
